Newgate-GK55-DSW Series

Newgate-GK55-DSW Series

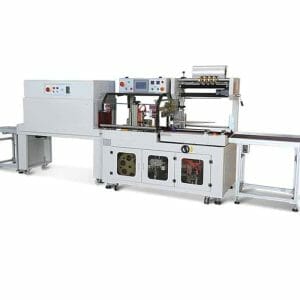

NEWGATE- GK55SW Series is the fully automatic L type vertical upper and lower sealing and shrinking machine is a new type of automatic shrink packaging machine with high degree of automation. It can automatically complete the steps of feeding, filming, sealing and shrinking, and the output can reach 20-35 pieces/min, supporting POF film, PVC film and other heat-shrinkable wrapping. The heat-shrinkable packaging result is not wrinkled, requires no personnel to operate, and has high work efficiency.

  • Vertical cutting system prevent crumples.
  • Sealing height is adjustable to ensure the sealing line is in the middle of the product height.
  • Adopt horizontal and vertical sensors easy to switch and fit for thin or small products.
  • PLC control system: easy to operate, safety and warning function.
  • Particularly suitable for high and big products.
SKU GK55-DSW Category Tags ,

Share:

Download Spac PDF
Free Consultation
Model GK-5545CSW GK-5530 CSW
Film POF, PE POF
Packing Speed 10-40pcs/min 1-40pcs/min
Packing Size L≧100 x (W+H) ≦400mm (H≦ 150mm) W≦400 x H≦200mm
Cutter Size / Tunnel Size W490mm L1300 x W500mm x H300mm
Max Temperature 280 ËšC 200 ËšC
Electrical 200V/380V 50-60Hz 3 Phase 200V/380V 50-60Hz 3 Phase
Power 3KW 14KW
Max Current 10A 22A
Air Compressing 5.5-8.5kg/cm3 /
Table Height 850+30mm 850+30mm
Machine Dimension L1680xW960xH1710mm L1680xW825xH1580mm
Machine weight 450 KG 250 KG
