Semi automatic corner and side sealing machine
Semi automatic corner and side sealing machine

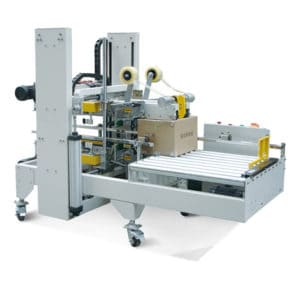

The semi automatic corner sealing machine NGGG-50 which is suitable for all types of cartons, after being sealed in the first half(upper cover), the carton is pushed by the L-shaped corner to seal the four corners. It need to manually adjust the size of the carton when the carton size changes. The carton is driven by the upper and lower belts. It is fast and stable when sealing, and has no folds at the four corners. It is suitable for those customers who have high requirements on the outer packaging of products, or those who require strict protection for internal products
Share:
| SPECIFICATIONS | |
|---|---|
| Packing speed | 480-600pcs/h |
| Carton Size | L320-600mm×W200-500mm×H180-500mm |
| Power Supply | 110/220V 50/60Hz 1Phase |
| Power | 1050W |
| Adhesive Tape Width | 48/60/75mm |
| Air Consumption | 200NL/min |
| Air Compressing | 0.6Mpa |
| Table Height | 600+50mm |
| Machine Dimension | L1900×W1230×H1530mm |
| Machine Weight | 400KG |
PACKAGE EFFECT
